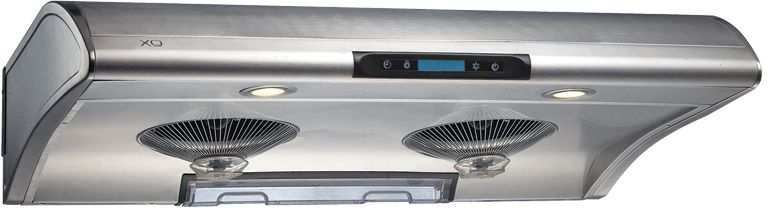

XO Ventilation XOA Series 36" Stainless Steel Under Cabinet Hood

View more by XO

Model #: XOA36S
Model #: XOA36S
XO Ventilation XOA Series 36" Stainless Steel Under Cabinet Hood-0

Out of Stock For home delivery or scheduled pickup
Nearest Store:2335 Washington Road Canonsburg PA United States 15317
See Other Store LocationsAdd zip code to view locations nearest to you

For items that are out of stock please contact our store for more details and availability timelines.

View Delivery & Pickup OptionsAdd Zip Code
Color Finish Name

Protection Plans

5 Year Warranty


Installation Services

Range Hood Installation Service


Range Hood Removal Service


Request more info
Current Inventory on Hand: 0
On Display at Canonsburg 0
On Display at Cranberry Twp 0
On Display at East Liberty 0
On Display at Erie 0
On Display At North Hills 0
On Display At North Huntingdon 0
On Display At Robinson 0
On Display At Upper St. Clair 0

At a Glance

Powerful ventilation in a sleek, state of the art system that is amazingly well-priced. The XOA utilizes an advanced Filter-less design with twin high velocity blowers that eliminate the need for filters, making cleaning simple and easy. Read More

Get to know this product.

Product Overview
Product Overview

Twin 550 CFM high velocity blowers optimally removes Smoke, Grease and Odors

Sones Min to Max: 1.0 – 5.5

6 speed illuminated touch controls

Two 20 W Halogen Lights – Provide brilliant illumination over the cooking surface

Dimensions: 30? or 36? x 22 1/8? D x 7? Tall

Filter Free – Advanced turbine fan design eliminates the need for filters

Mounting Height from cooking surface 27?-32?

Duct Options and Electrical Requirements:

6 inch round can be converted to 3 1/4? x10? Top or Rear Venting

AC 115v—60hz (4amp)


Optional Make Up Air dampers Model XOMA06

Useful Documents

General Specs

Width (in.)36
Height (in.)7
Duct Size (in.)6
Depth (in.)22
Appliance ColorStainless Steel
Color Finish NameStainless Steel
Range Hood TypeUnder Cabinet
Appliance Fit Width (in.)36
Maximum CFM550
Sones Rating5.5
Noise Level (Sones)Standard - (High)




Max Height Above Cooktop:32
Min Height Above Cooktop:26



General Features

Filter Type:Filterless


Number of Lights:2
Air Mover(s) Speed:6
Sones (Noise Level) Rating:5.5
