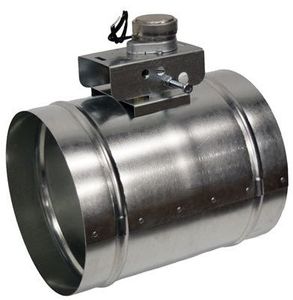

Wolf® Stainless Steel Make-Up Air Damper


    Model #:

    820071

    Model #: 820071
    208153
    Wolf
    $99,999.00

    At a Glance

    Product Dimensions 10"h x 8"w x 11"d

    The make-up air damper is designed for use with Wolf Ventilation systems. Used to exchange air between indoors and outdoors, drawing fresh air into the home and replacing exhausted air.Read More

    Call for Best Price

    What We Offer

    Services

    View Options

    None Selected
    You Might Also Need

    View Options

    None Selected

    Get to know this product.

    Product Overview

    Product Overview
    Get Expert Support, 24/7

    Whether you’re shopping for appliances or have questions about those you already own, we’ve got the resources you need. Talk directly to a customer care expert at the Sub-Zero, Wolf, and Cove service center, or connect with an appliance consultant at an official showroom near you. Get quick answers online, or reach a certified service provider or installer. And much more.

    Damper Specifications

    The damper is not required if using a recirculating kit.

    The damper is controlled by a pressure switch and independently powered.

    It can work with any blower or vent system, including in-line blowers.

    It is connected to 120V supply, and the transformer installed reduces the power supplied to 24V.

    The damper opens when a range hood is operating. Creating a known, controlled point for fresh air to enter the home while air is being exhausted from the building by the range hood.

    When in use, gravity and the exhausted air force the damper open and closed. Dampers provide two key benefits for the home:

    Facilitates air exchange between indoors and outdoors, by drawing fresh air into the home to replace exhausted air.

    Helps avoid negative pressure conditions within the home, which may interfere with the proper operation of combustion equipment within the home by drawing in the fresh air.

    Useful Documents
    Specifications

    General Specs

    Color Finish NameStainless Steel
    Width (in.)8
    Depth (in.)11
    Height (in.)10
    ColorStainless Steel
