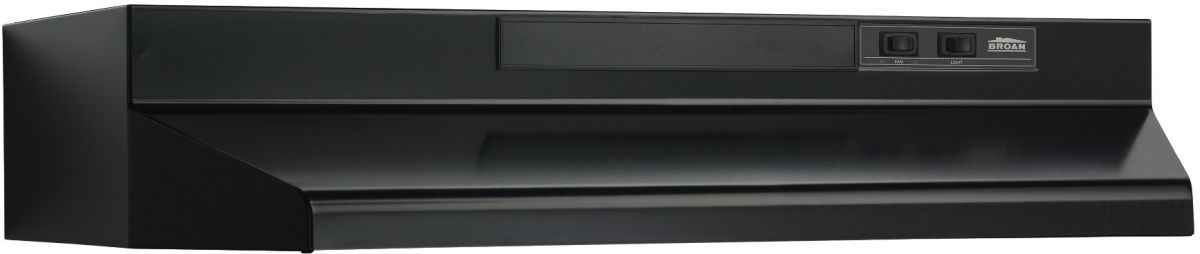

OUT OF BOX Broan® 24" Convertible Under The Cabinet-Black


Model #:

F402423-020425

BILMAR DR
IN STOCK

At a Glance

Product Dimensions 6"h x 24"w x 17.50"d

Broan® 24" Convertible Under The Cabinet-Black with 160 cfm and dishwasher safe aluminum grease filtersRead More

Sale $49.71

$99.00

Save $49.29

Availability

Limited Availability For home delivery or scheduled pickup
My Store:2335 Washington Road Canonsburg PA United States 15317
Add zip code to view locations nearest to you

Items in-stock are available for scheduled delivery or scheduled pick-up at certain locations. Please contact locations prior to traveling to a location for pick-up.

View Delivery & Pickup OptionsAdd ZIP Code

What We Offer

Protect Your Purchase

View Options

5 Year Warranty

$149.99

Services

View Options

None Selected

Save up to 50% on Closeouts,Floor Models, & Overstock!

Current Inventory on Hand: 1
On Display at Canonsburg 0
On Display at Cranberry Twp 0
On Display at East Liberty 0
On Display at Erie 0
On Display At North Hills 0
On Display At North Huntingdon 0
On Display At Robinson 0
On Display At Upper St. Clair 0
On Display at Morgantown 0
Request More Info

Get to know this product.

Product Overview

Product Overview

The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air re-circulation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.

  • Four-way convertible; installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted. Non-Ducted Filter sold separately - Model 41F
  • 160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance – HVI 2100 Certified
  • Dishwasher-safe aluminum grease filter
  • A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
  • Includes 3-1/4" x 10" damper/adapter and 7" round adapter
  • BP87 dampers sold separately



Useful Documents
Specifications

General Specs

Width (in.)24
Height (in.)6
Duct Size (in.)3.25" x 10"
Depth (in.)17.50
ColorBlack
Color Finish NameBlack
Range Hood TypeWall Mounted
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)24
Maximum CFM160
Voltage120
Amp2.5
Ventilation TypeConvertible (Both)

Dimensions

Max Height Above Cooktop:18

Display

Controls:Mechanical

General Features

Filter Type:1 Dishwasher Safe Aluminum Grease Filter

Other

Number of Lights:1
Settings:Variable Speed
Air Mover Type(s):Fan
Number of Air Movers:1
Sones (Noise Level) Rating:6.5
