Product Dimensions 12"h x 46.38"w x 19.25"d

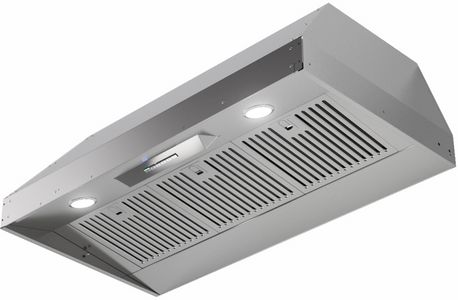

The XOIL series integrates a powerful XO Blower with a factory prefabricated liner for quick easy assembly. Made in Italy, these units employ our advanced Code Compliance Control, multi-level LED lighting and have an optional remote.Read More
Please contact our store for more details and availability timelines.
View Options
5 Year Warranty
$209.99
View Options
View Options
Backlit Electronic 4 Speed Control with Power Boost
CCC Code Compliance Control – permanently set blower to 395 or 600 CFM to meet local codes
High Efficiency 3000K LED lights brightly illuminate the cooktop
Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
5 Minute Delay Shutoff Timer
Convertible 6” Vertical Duct or Ductless Recirculating (Kit Sold Separately)
XO quality and performance for your custom built-ins
Made In Italy
2 year limited parts and labor warranty for the original owner
Combination blower and liner saves time and money
General Specs | |
Width (in.) | 46.38 |
Height (in.) | 12 |
Duct Size (in.) | 6" |
Depth (in.) | 19.25 |
Color | Stainless Steel |
Manufacturer Warranty | 2 Year Limited Parts & Labor |
Color Finish Name | Stainless Steel |
Range Hood Type | Insert |
ADA Compliant | Yes |
ENERGY STAR Certified | No |
Outdoor Approved | No |
Appliance Fit Width (in.) | 47 |
Smart Compatible | No |
Maximum CFM | 600 |
Bulb Type | LED |
Grease Filter Type | Baffle |
Filter Indicator Light | No |
Sones Rating | 1.0 - 6.5 |
Fan Speed Options | 4 |
Vent Location | Top |
Height Above Cooktop | 27" - 32" |
Voltage | 115 |
Amp | 4 |
Frequency | 60 |
Range Hood Features | Light, Ductless Capable |
Noise Level (Sones) | Standard - (High) |
Ventilation Type | Convertible (Both) |
