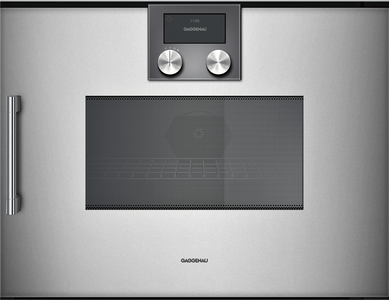

Gaggenau 200 Series 24" Stainless Steel Electric Built In Oven/Micro Combo

Product Overview

Programs

Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W

Broil + Convection from 210°F - 480°F

Convection at 100°F and from 210°F - 480°F

Broil + circulated air from 210°F - 480°F

Broil with 3 levels of intensity, maximum output 2000 W

Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable

4 defrosting programs

4 cooking programs

7 combination programs

Option to save 50 individual recipes

Operation

Rotary knob and TFT touch display operation

Clear text display in 25 languages

Information key with use indicators

Side-opening door opens up to 110° angle

Features

Innowave

Fast heating setting

4 tray levels

Actual temperature display

60 W halogen light on the side

Safety

Thermally insulated door with triple glazing

Triple door lock

Child lock

Safety shut-off

Cooled housing with temperature protection

Cleaning

Hygienic stainless steel interior with glass ceramic base

Interior back wall with catalytic coating

Planning Notes

Door hinge not reversible

Plan the niche without back wall

Necessary lateral gap between appliance door and cabinet front of min. 3/16"

The door panel front of the appliance extends 13/16" from the cabinet front

The outer edge of the door handle extends 2 13/16" from the cabinet front

Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance

When planning a corner solution, pay attention to the 110° door opening angle

Plan a power outlet outside of the cut-out niche

*Plan for a 42" connection cable without plug (hardwire required)
